Harmoni allows you to create new items or customized constructions to suit your analysis and reporting requirements. New variables can be created using items that already exist in the project, or with user-entered values.
Measure groups is another construction type available in Harmoni. Measure groups combine a group of measures that are logically linked together.
In this article
- Create a measure group
- Measures inside measure groups
- Measure groups in Analysis
- Remove measures from a measure group
- Measure groups and grids
1. Create a measure group

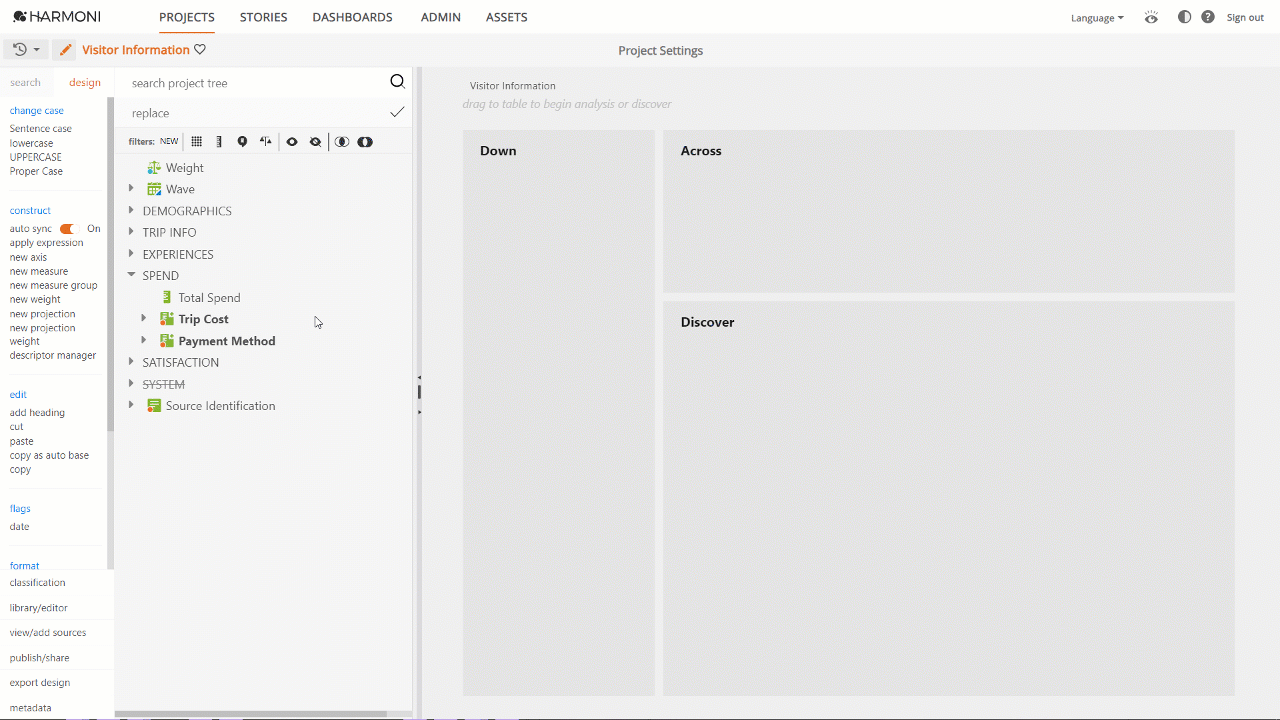

You can create a new measure group by selecting multiple measures and then choosing the option new measure group under construct from the design menu.

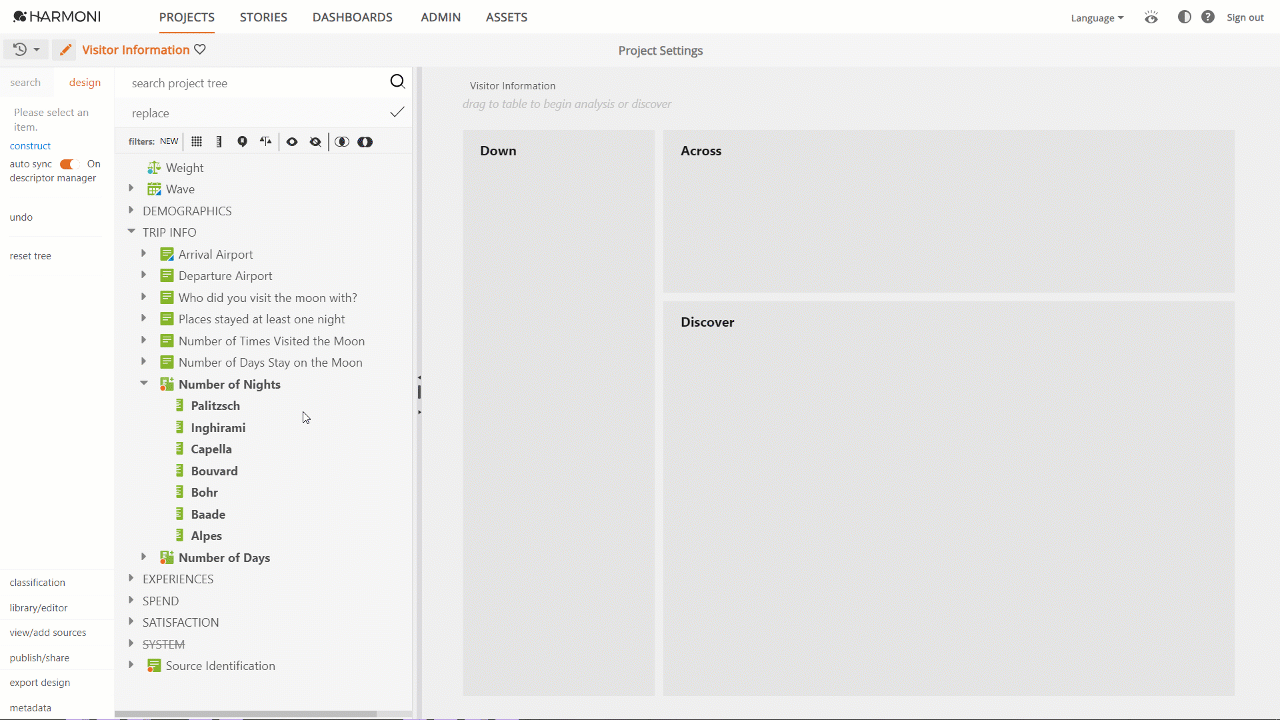

Alternatively, you can also create a measure group by selecting the option new measure group and then dragging the relevant measures into this item.
- Select the measures you want to add to the measure group
- Select create new measure group under construct
- Name your measure group
Alternatively,
- Select create new measure group under construct
- Name your measure group
- Drag the measures into the measure group
2. Measures inside measure groups
Measure groups look like an axis, but they contain numerical values. When grouped, each individual measure becomes an element of the measure group.

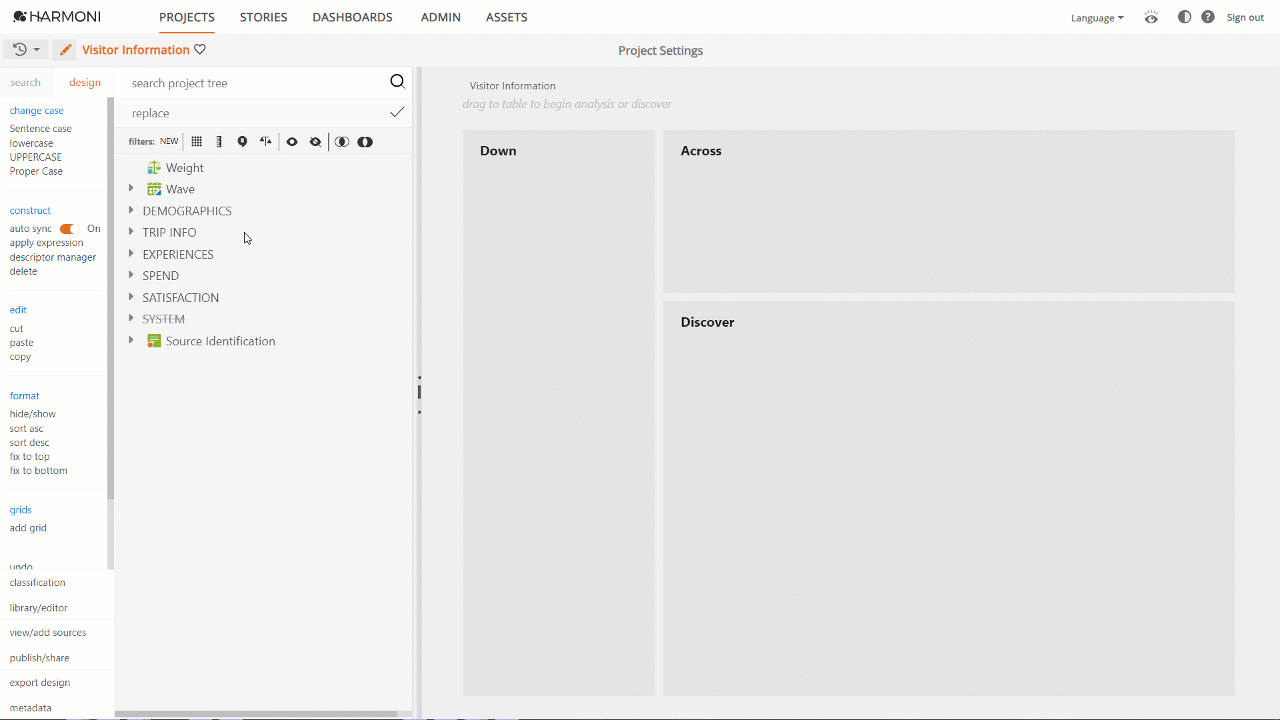

Measures inside a measure group can be renamed. They can have the same label as any other axis or measure in your project tree.
Linked Axis

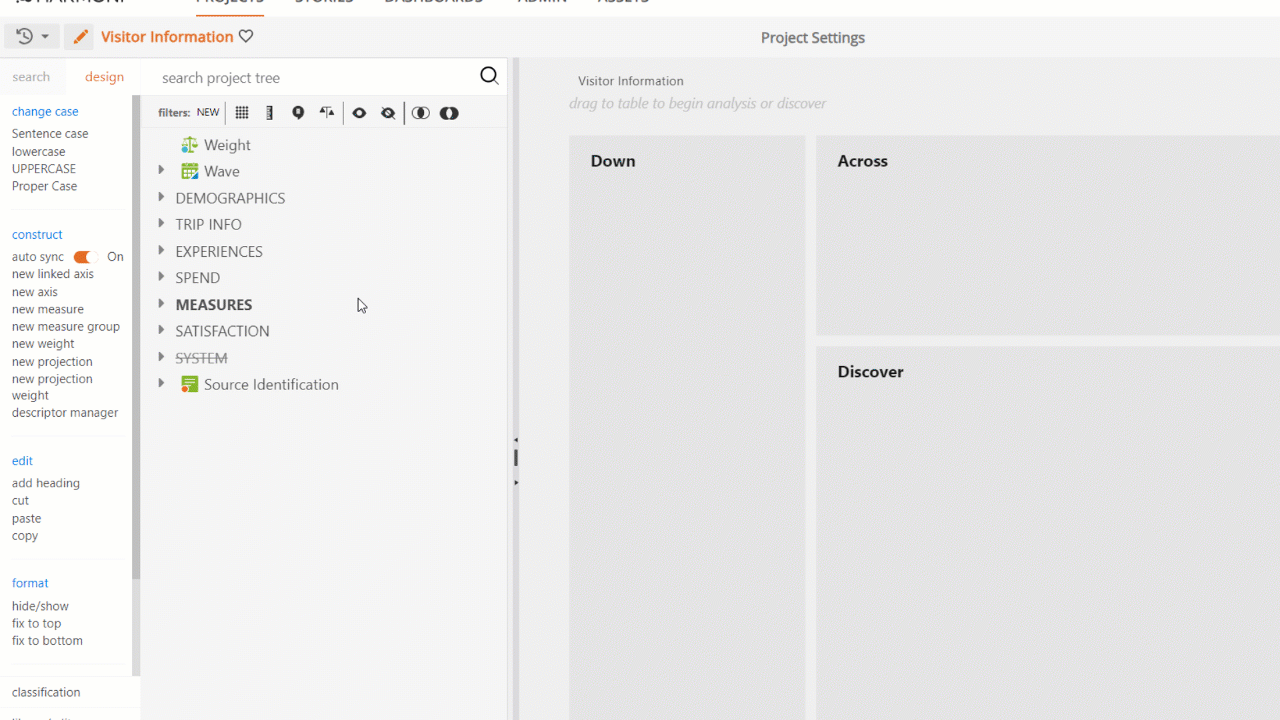

You can select a measure inside a measure group, and using the linked axis option, Harmoni automatically creates a standard (linked) axis that looks at the values in the measure. Learn more about linked axes.
You can select one or multiple measures to create linked axes.
3. Measure groups in Analysis
A standard axis must already exist in the analysis before adding a measure group,

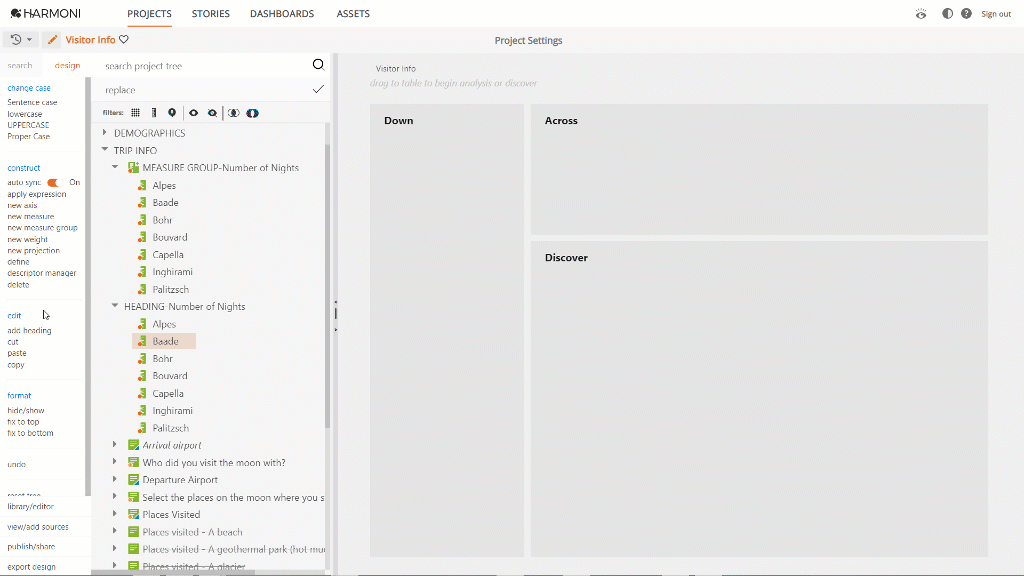

Measure Group versus multiple measures under a Heading
When analyzing a group of measures, there is an important difference between the results from a Measure Group and the results from multiple measures under a Heading.
If a measure is in a Measure Group and you drag just one measure into your analysis, the Ʃ% (sum percent of values) will be calculated over the sum of all measures in the group.
If the measure is not in a Measure Group and is instead in a Heading with the other measures, it is independent. When you drag one measure from under a Heading, the Ʃ% will be based on only that measure.
It is important to consider the type of analysis requirements when setting up measures.

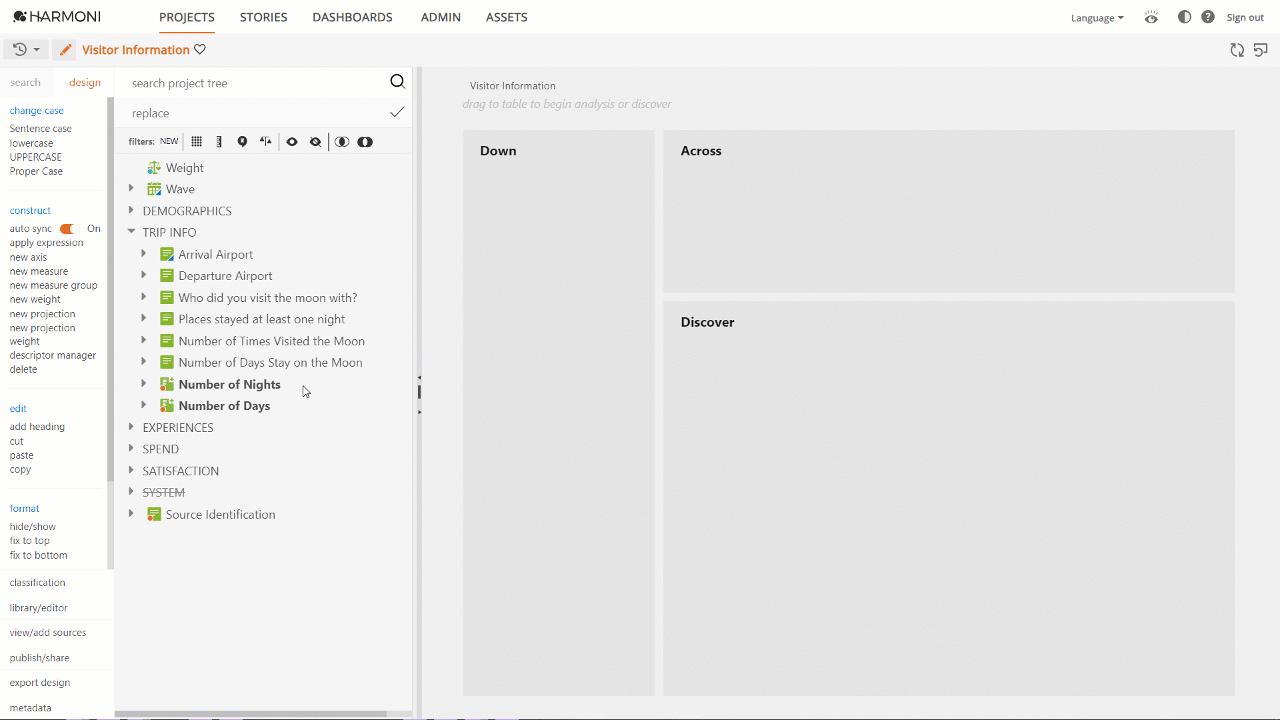

4. Remove measures from a measure group
A measure group can be split into individual measures.
- One or more measures can be removed by dragging and dropping out of the measure group.
When removing a measure from the group, you have the option to preserve or revert to the original labels of the items. If you have already done some label changes, you may want to maintain these.
Once split, measures will go back to their original location in the project tree.
Before removing a measure group make sure it is not used in any views, stories, or dashboards, else they will become invalid even if you recreate the group.
5. Measure groups in Grids
Measure groups can be combined together in a Grid.
To create a grid:
- Select the measure groups you want to combine.
- Select add grid under grid.
Combining standard axes and measure groups in a Grid
Even better, measure groups can be combined with standard axes in a grid. You can add measure groups to an existing grid or use the add grid option under grid.
Once items are in the grid you have the ability to harmonize labels to suit your reporting requirements. However, elements can't be combined to create a net in a grid that contains a measure group.
Where to from here?
Learn more about Constructions.
