A pyramid chart is a simple way to show ordered data or hierarchies. Like a stacked bar chart, each segment is stacked vertically. However, the height of each segment is the same, and the value of each segment, represented by its width, is usually (but not always) smaller than the segment below, which gives the pyramid shape. Pyramid charts are useful when the data is ordered from largest to smallest.

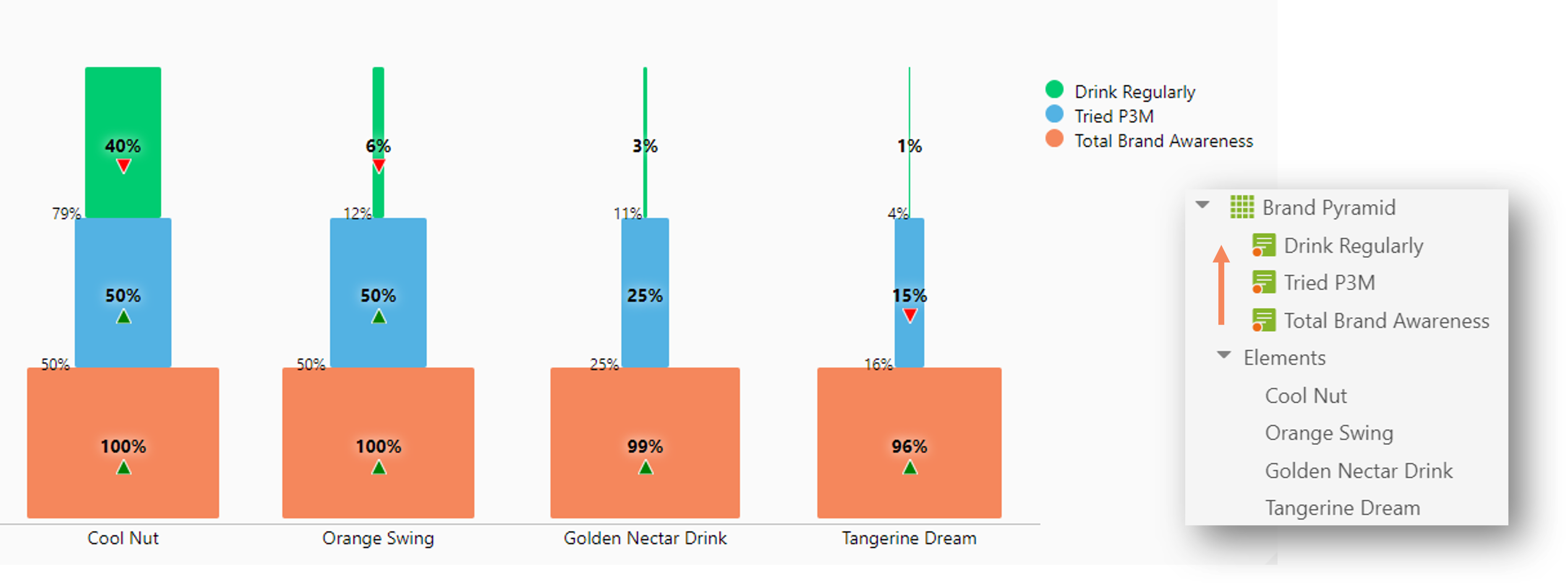

In the example below, the axes are ordered in the project tree with the largest values at the bottom and smallest values at the top, and so the chart displays the progression upwards from awareness to trial and regular consumption.





• Select the axes. In this case a grid has been setup with the required axes that share the same element list.
• Click Visualize and Harmoni defaults to a bar graph.

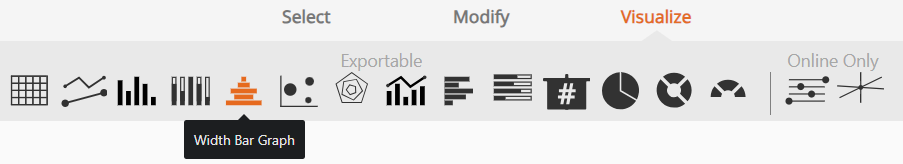

• From the Visualize menu, select the pyramid graph icon.
• To change the sort order of the brands, Total Brand Awareness is selected and Ranked.

Default smart graph settings

Dimension	Description
Horizontal/across (x-axis)	Across element limit: 30 elements
Legend: Vertical/down (y-axis)	Down elements limit: 30 elements



Conversion Rate Percentages

The conversion rate shows the proportion of respondents who move from one level of the pyramid to the next. In the example of Cool Nut, 50% of respondents move from Total Brand Awareness through to Tried in the Past 3 Months and 79% move from Tried in the Past 3 Months through to Drink Regularly. The conversion rate default direction is from bottom to top.



Ranking

You can change the order of the rows by using Rank. This will also change the direction of the conversion percentages calculation.

In this example, rank changes the pyramid graph to a funnel graph.

• Rank the table
• Use the Visualize menu to select a pyramid graph
• Ranking highest to lowest changes the order and displays a funnel graph

Learn more about Rank.

Default Conversion Rate Direction when Ranked (Pyramid)

• No ranking: bottom to top
• Rank high to low: top to bottom
• Rank low to high: bottom to top



Reordering

Using reorder allows you to manually change and control the order of the rows. This can be necessary if you are pulling individual axes from the project tree, rather than a grid with a preset order. When you select individual axes, Harmoni defaults to ordering the axes in the same order as they appear in the project tree.

Note that you cannot use reorder if ranking has been used.

• Drag the required axes with the same elements to the analysis pane
• Use reorder to order the rows
• Click Visualize and select the pyramid graph

Learn more about Reorder.



2. Funnel Graph

When the data in a graph flows from top to bottom, this is referred to as a funnel graph. In Harmoni, you can set the default direction of the conversion rate to match a funnel graph shape, instead of using the ranking option detailed above.

Although the default conversion rate can be reversed, the order of the elements still needs to be controlled to create the shape of the funnel graph. This can be done in the project tree by the project owner, manually ordering the axes, or you can use ranking to change the order of the elements from highest at the top to lowest at the bottom.

You can have the default conversion direction setting changed via personalization keys. Keys that can be applied at the user, site (all users), or company (all users) level. Please contact support@infotools.com to make this change, but note that changing the default conversion direction affects all projects on a site and must be discussed with the project team or site administrator prior to requesting the change.



When the default conversion direction is changed to match a funnel graph, the no ranking option is different when compared with the pyramid conversion direction.



Default Conversion Rate Direction when Ranked (Funnel)

• No ranking: top to bottom
• Rank high to low: top to bottom
• Rank low to high: bottom to top
