In Harmoni, the item label in the project tree is referred to as the display label. The display label in the project tree is mapped to the original label in your source data; this is referred to as the source label.
In this article
1. Identify the source label
When the display label is different from the source label, you can identify the source label by:
- Using the view/add sources option in the project tree.
- Using the modify menu in the analysis zone.

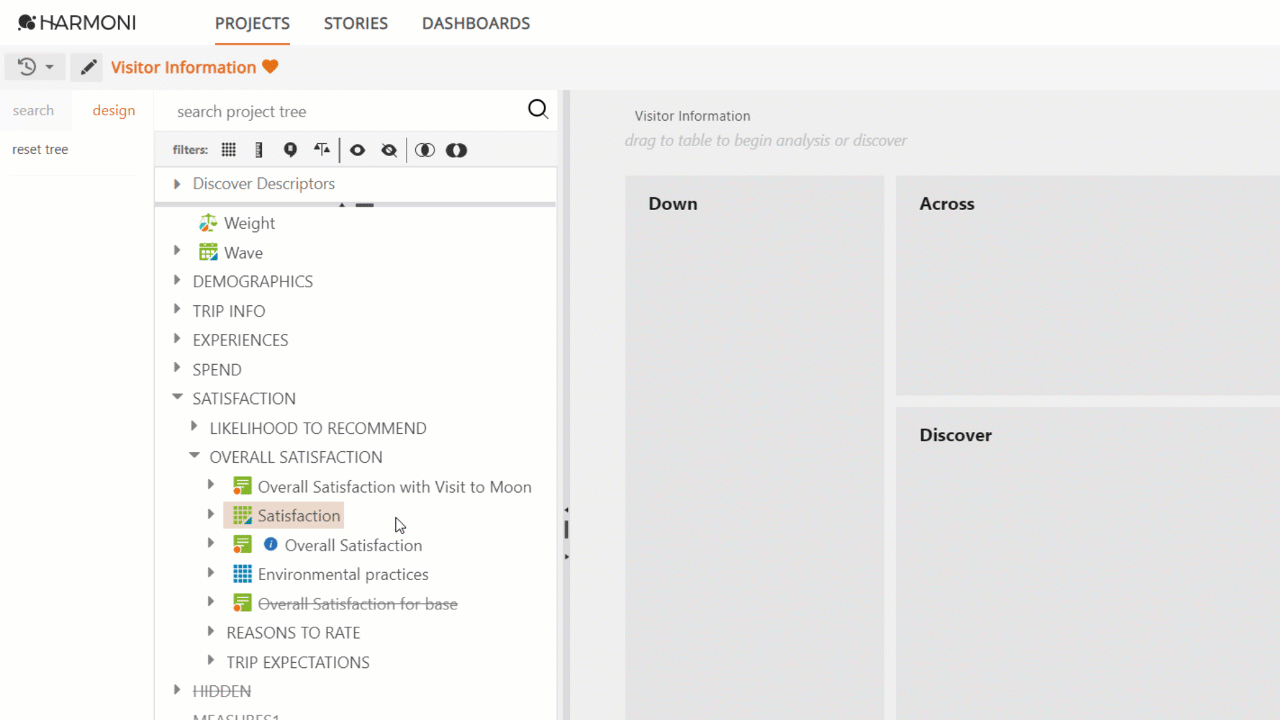

Source label in the Project tree
When the display label is different from the source label, the source label of a standard axis or element can be seen by hovering over a source in the view/add sources panel.
- Select view/add sources.
- Select an item in your project tree (i.e., axis).
- Hover over the source name, and Harmoni displays the source label for the selected item.
Note: Harmoni will not display the source name of constructed items.
Source label in Analysis pane
An alternative way to identify the source label is through the analysis pane.
When using the analysis area, the source label and associated source are displayed in a table format. From the modify menu select the source label information icon , where you have the option to group by item or group by source.
- Drag the item to the analysis pane.
- Select a column.
- On the modify menu, choose add.
- Select drop down arrow below the source label information icon
and select the option you want.
Source Label in a Grid
You can use the option under the modify menu to identify the source labels for grids.
- Drag grid to the down in the analysis pane.
- Stack.
- Select a column.
- On the modify menu, choose add.
- Select the source label information icon

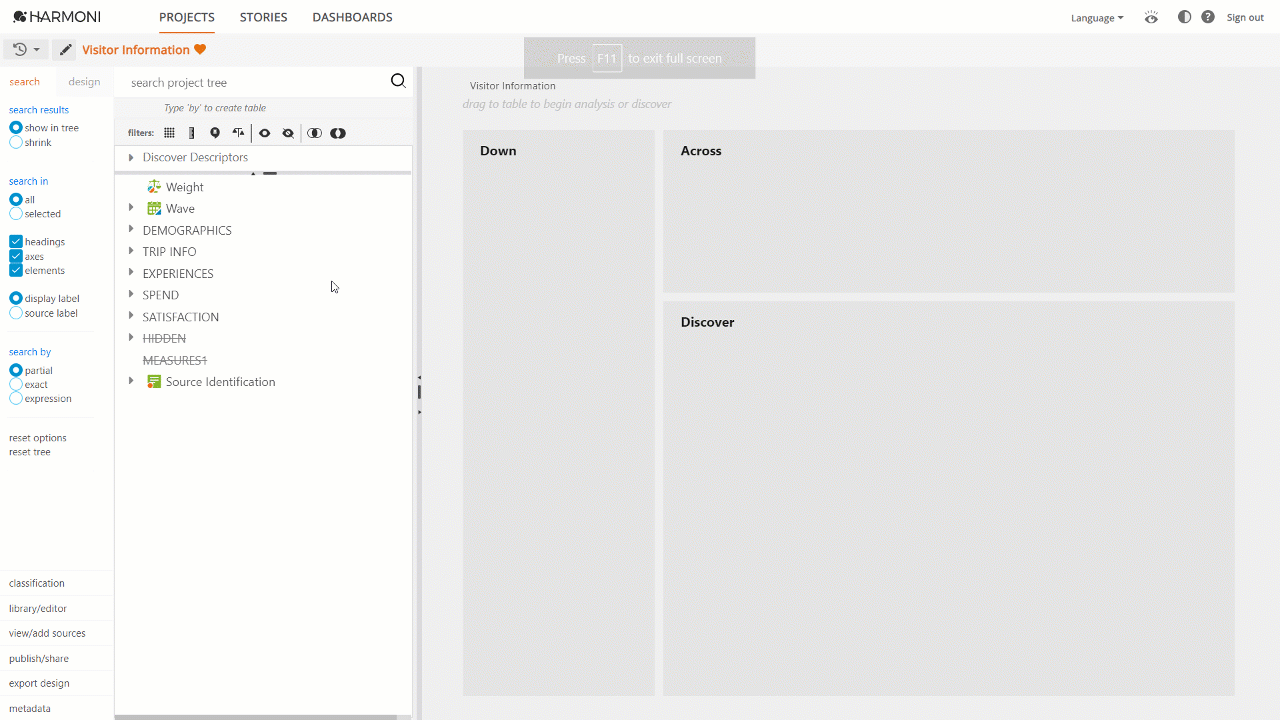

2. Find a source label
You can also do a search when you know the original label of a variable in your data source. The search will return the corresponding match in the project tree.
For the search to work, you need to select the search in source label option in the search menu.
- In the search menu, select search in source label.
- In the search project tree area, enter the source label you want to locate.
- Hit enter or click on the search icon.
- The search will return items that match the relevant source label.
3. Revert a label
Revert is a powerful way to return your project labels to a previous/original state. You can use the revert label option if you wish to change the display label across all sources or when you just need to change the label from one of your sources. Reverting a label creates a new item in the project tree.
Learn more about how to revert a label.
